1. INPUT REQUIREMENT

1.1 Input voltage range: 100-240VAC

1.2 Frequency: 50-60Hz

2. OUTPUT REQUIREMENTS

2.1 Output voltage: 5V DC (max 5.25V min 4.75V)

2.2 Max lode: 1000MA

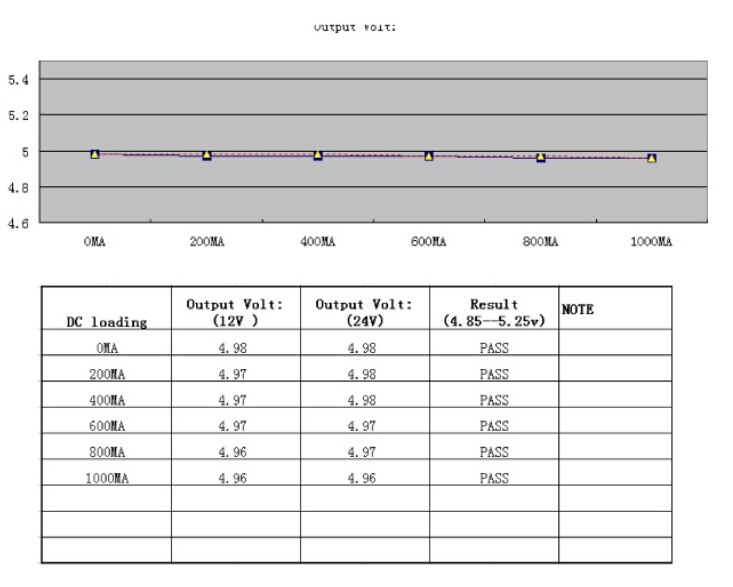

2.3 Load regulation: +/-5%

2.4 Line regulation: +/-5%

2.5 Ripple & Noise: 100mV Max

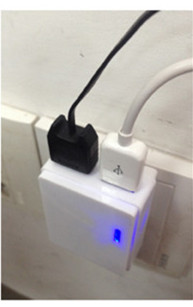

2.6 Double USB port available

3. OVER ALL PERFORMANCE

3.1 Max output power 8w

3.2 Efficiency: 80% Min at full load nominal line

3.3 Input wattage: at DC output no load condition less than 0.5 watt at normal

4. Reliability

4.1 Life: average life expectancy of 3 years

4.2 MTBF: 50,000hrs at 25 celsius degree

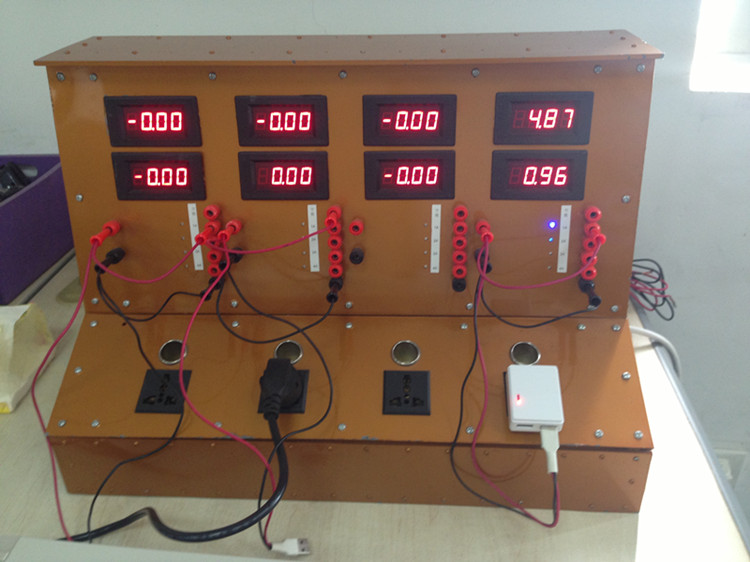

4.3 Burn-in test: 100% Burn-in full load at 5 hours

5. ENVIRONMENT

5.1 Operating temperature: 0-50 celsius degree

5.2 Relative Humidity: 20-90%

5.3 Storage temperature: -20-80 celsius degree, storage humidity: 8-95%

6 EMI STANDARDS & SAFTY

Meets the conduction limit of FCC CALSS B, EMC, ENERGY STAR

7. TYPE AVAILABLE:

US-Type, EU-Type, UK-Type

Package Available: Blister/Gift Box, Master carton
